Roland Pedals Boss EQ-200 Graphic Equaliser

SIMPLY SOPHISTICATED

With the 200 series, BOSS introduces a new generation of pedals that pack advanced sound and versatility into a streamlined size that saves space on your board. Grab-and-go controls and multi-function switches make operation easy and intuitive, while onboard memories allow you to store multiple setups for instant recall. All 200 series pedals feature premium audio quality with 32-bit AD/DA, 32-bit internal processing, and 96 kHz sampling rate, as well as support for additional control via external switches, an expression pedal, or MIDI.

The EQ-200 is the most flexible compact EQ ever created for guitar and bass. It features two wide-ranging 10-band EQ channels, plus an onboard graphic display that shows the current EQ curve at a glance. Selectable signal flow structures configure the channels for stereo, parallel, or series operation, and it’s even possible to patch in external pedals for deep pre/post tone shaping. Going further, the frequency centers of all 10 bands can be set to three different types, letting you optimize the EQ-200’s performance for different instruments.

• Class-leading sound quality with 32-bit AD/DA, 32-bit floating point processing, and 96 kHz sampling rate
• Dual 10-band EQs that can be used in stereo, parallel, or series
• Insert function for processing external effects with pre and/or post tone shaping
• Three different range settings: 30 Hz to 12.8 kHz, 32 Hz to 16 kHz, and 28 Hz to 14 kHz
• 15 dB boost/cut on each band, plus overall level control for each channel
• Stereo link function for operating both EQ channels together

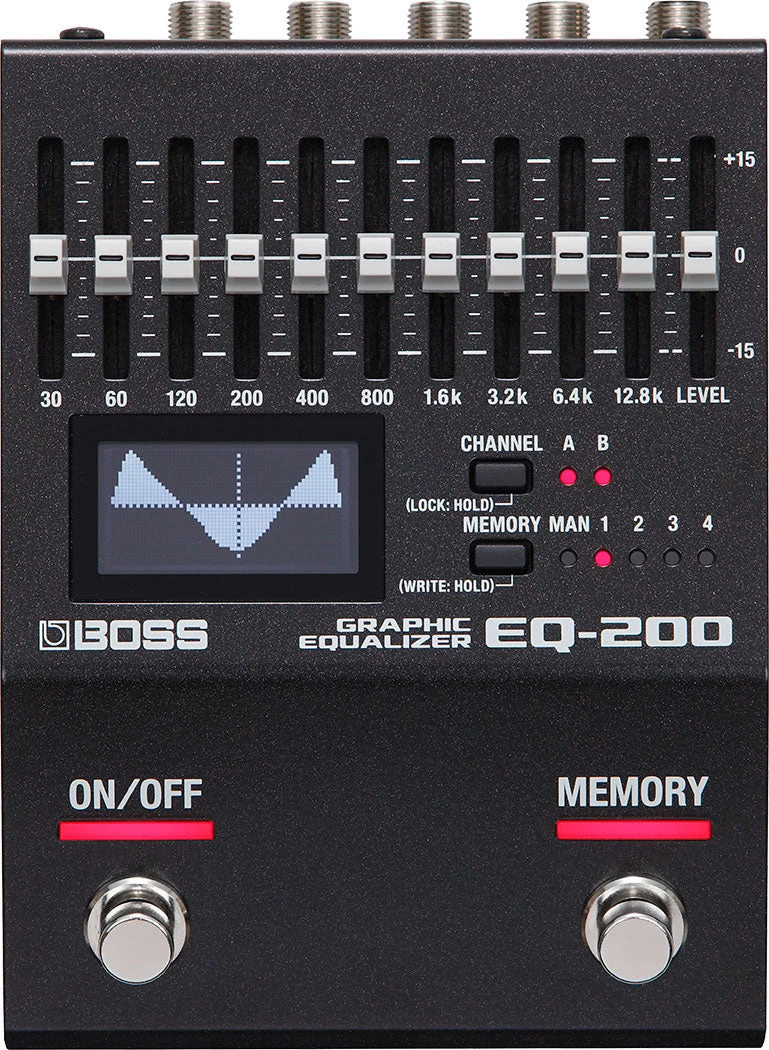

• Intuitive interface with hands-on sliders and graphic EQ display
• Access 128 user setups from the panel or MIDI program change
• Recall consecutive memories plus real-time panel setting via footswitch or dedicated panel button
• Panel Lock function disables controls to prevent unwanted changes
• Two onboard footswitches with customizable assignments
• Support for expanded control via external footswitches, an expression pedal, or MIDI

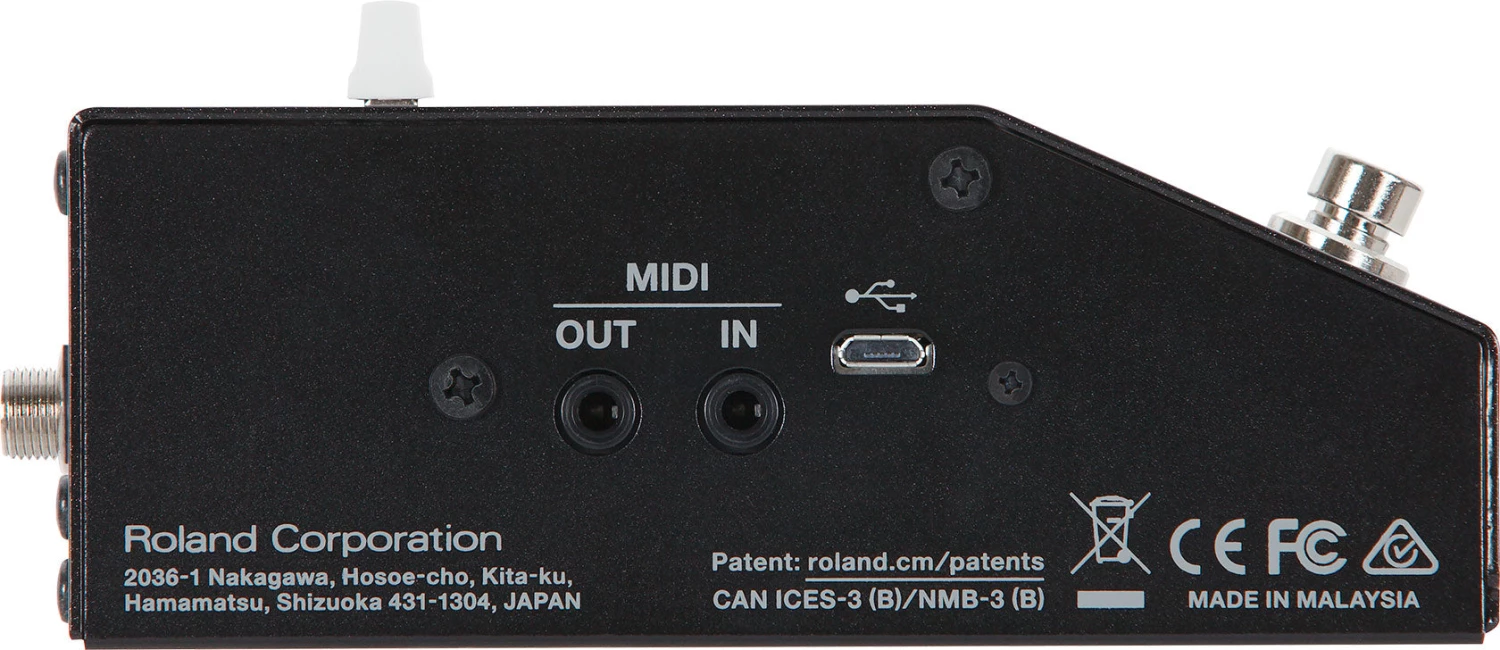

• Full MIDI I/O provided with mini TRS jacks (BMIDI-5-35 adaptor cable available separately)
• Micro USB jack for firmware updates
• Runs on PSA-series AC adaptor or three AA-size batteries
