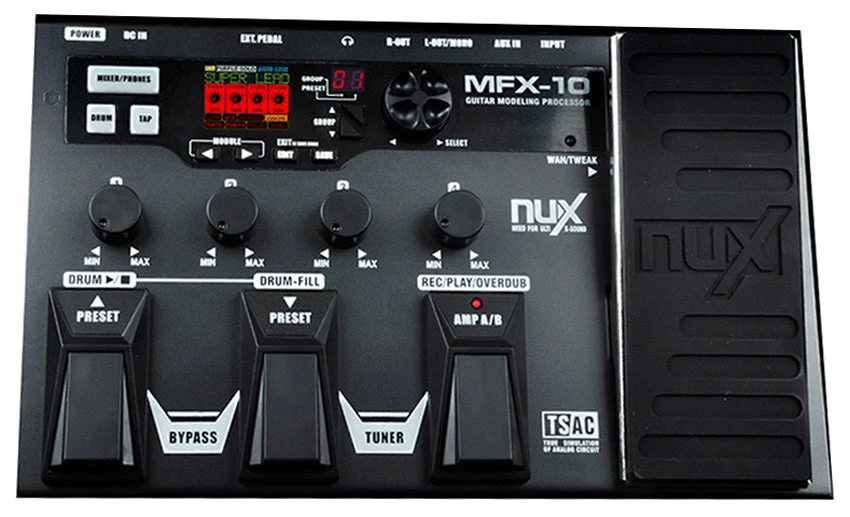

PRO MUSIC NU-X MFX10 Multi-Effects & Modelling Processor

NU-X MFX10 Multi-Effects Processor

Features:

• A total of 55 models, up to eight can be used simultaneously
• 19 classic amp and pedal models with A/B channel switching
• Vintage 3-band passive EQ for every amp model
• Parametric EQ with extra middle frequency sweep control for pedals
• 12 cabinet models provide two different modes for guitar amplifier or mixer/PA input
• Built-in drum machine with CD quality PCM sounds
• Up to 20 seconds phrase loop with sound on sound
• The AUX IN jack makes it easy to practice along with MP3, CDs and other inputs
• The expression pedal lets you adjust the volume or effects parameters in real time
• Big backlit 160 x 128 TFT LCD for clear, easy viewing of the device’s name, parameters, tuner display etc
• A total of 72 presets: 36 factory + 36 user presets. The A/B switch allows you to use up to 144 presets
• New generation 32-bit DSP, High Performance 24 Bit/ 48kHz AD/DA convertors
• Latest TS/AC (True Simulation of Analog Circuits) Technology duplicates the distortion and tone shape of tube and vintage effect pedals

Specifications:

• Effects types: 55
• Effect modules: Max. 8 simultaneous modules
• Preset memory
• User settings: 4-Preset (A-D) x 9 (1-9) groups = 36
• Factory setting: 4-Preset (A-D) x 9 (1-9) groups = 36
• Total 72 presets (up to 144 presets with AMP A/B switch)
• Sampling Frequency: 44.1kHz
• AD/DA converter: 24bit
• Signal processing: 32bit
• Frequency response: 20Hz – 20,000Hz ±1dB
• THD+N:  < 0.01%
• Display: 160 x 128 TFT LCD
• Jacks: INPUT, LEFT(MONO), RIGHT, HEADPHONES, AUX IN, EXT.PEDAL, DC IN
• Input: -10dBv @ 1M?
• Output: -10dBv (Output load impedance of 10k? or more)
• AUX In: -10dBV @ 10k or more
• Headphones: 20mW + 20mW (into 32? load)
• Power: 9V DC, 500mA, ACD-007A (Negative pin)
• Dimensions: 330(L) × 202(W) × 72(H)mm
• Weight: 2.65kg
• Accessories: Owner’s Manual, Power Adaptor

** Free Firmware Updates and Manuals are available by clicking here then selecting “Support”
