National KNA VV-2 Violin Ickup With Volume Control

Portable piezo pickup for violin and viola with volume control.

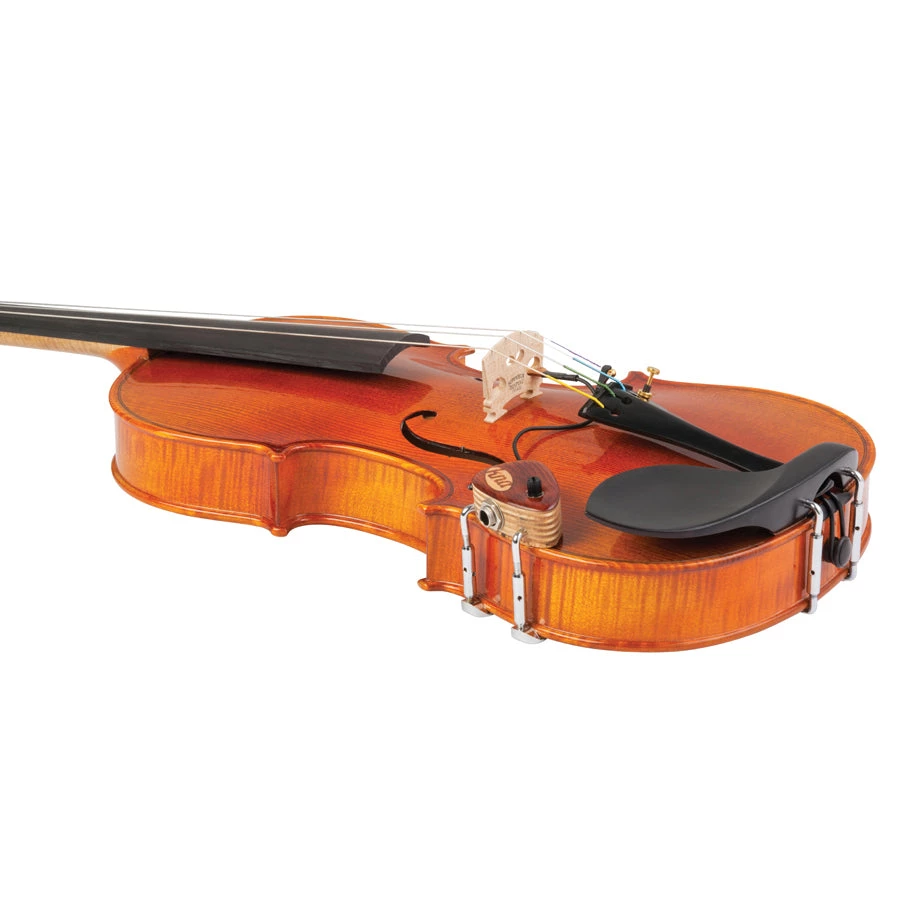

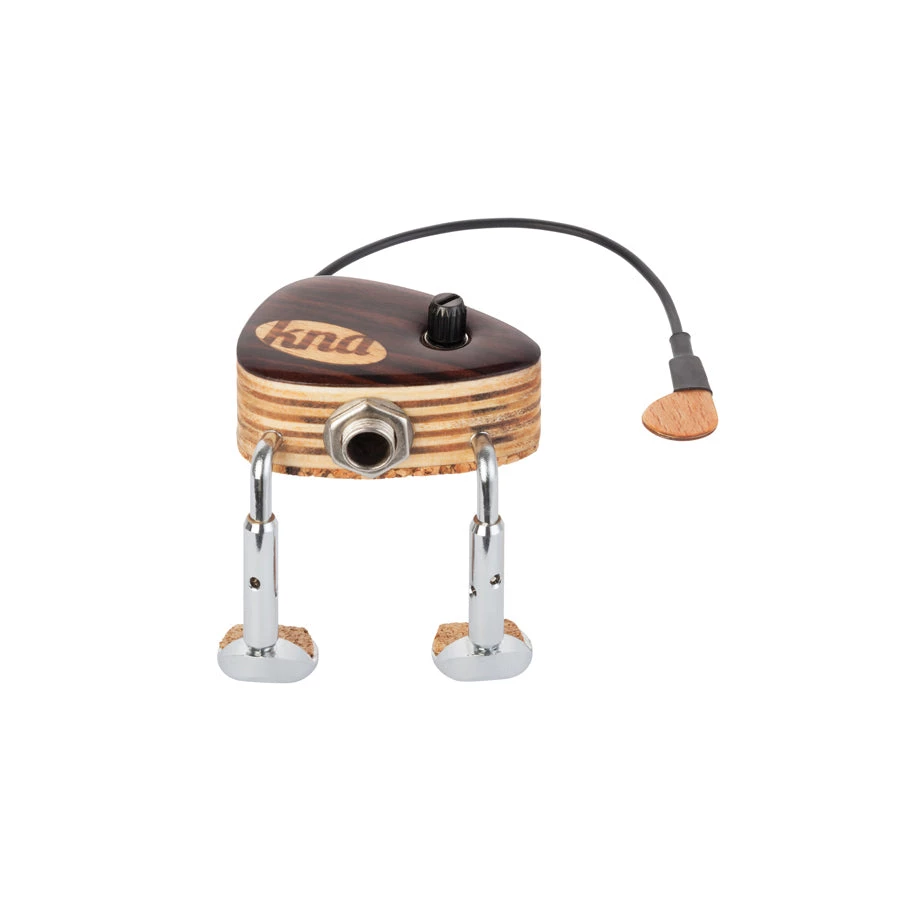

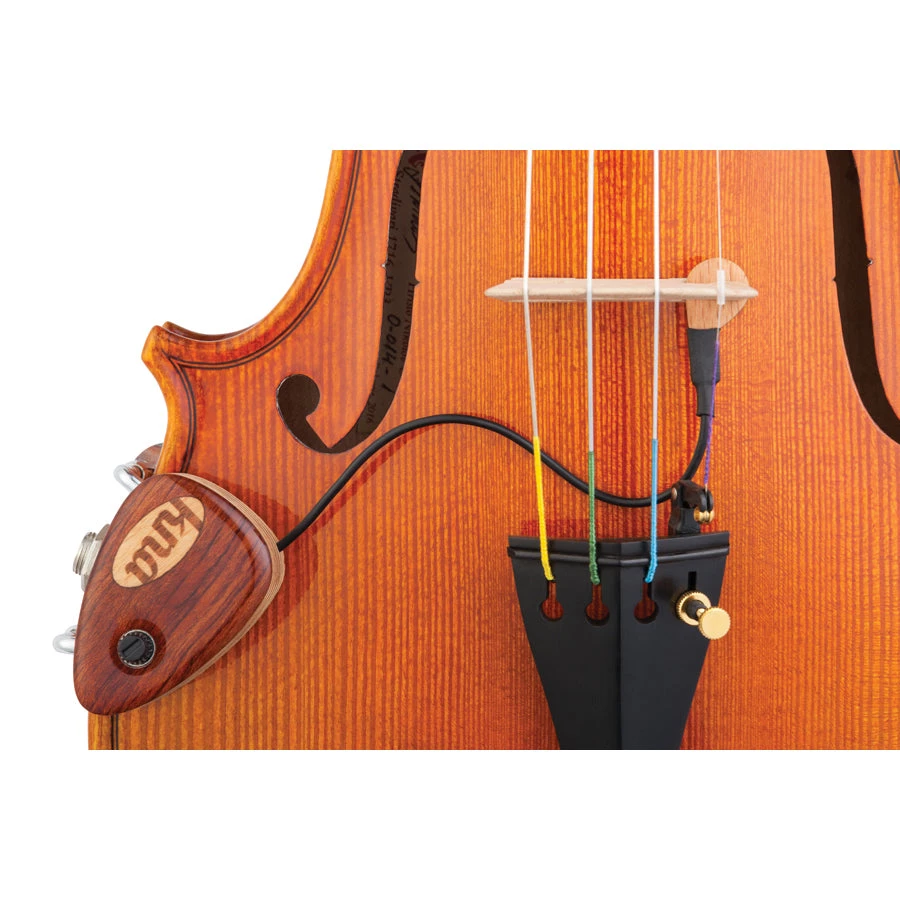

VV-2 is perfect for players seeking pure tone and simplicity with the ability to adjust output volume from the stage. A passive piezo sensor installs at the bridge. A potentiometer is built into the jack housing, which mounts safely to the instrument via cork-lined, fully adjustable barrel clamps.



specifications
Overall weight	30gr / 1.05 oz
Jack housing material	Laminate birch and walnut top
Lead cable from jack housing to element	13cm / 5.10″
Diameter of piezo element	11.8mm / 0.46″
Thickness of the piezo element	1.8mm +/- 0.10mm 0.07″ +/- 0.003″
Maximum Impedance	1500 Â‰Ã£_
Potentiometer	500 kilo ohms
Clamps adjustability (min & max)	32mm to 42mm 1.25″ to 1.65″
Clamps adjustability (min & max) with viola barrels (provided)	36mm to 49mm 1.41″ to 1.93″
