National Guitar Preamp/Pickups KNA SG-1 Acoustic Guitar Pickup

Portable piezo pickup for steel string guitar.

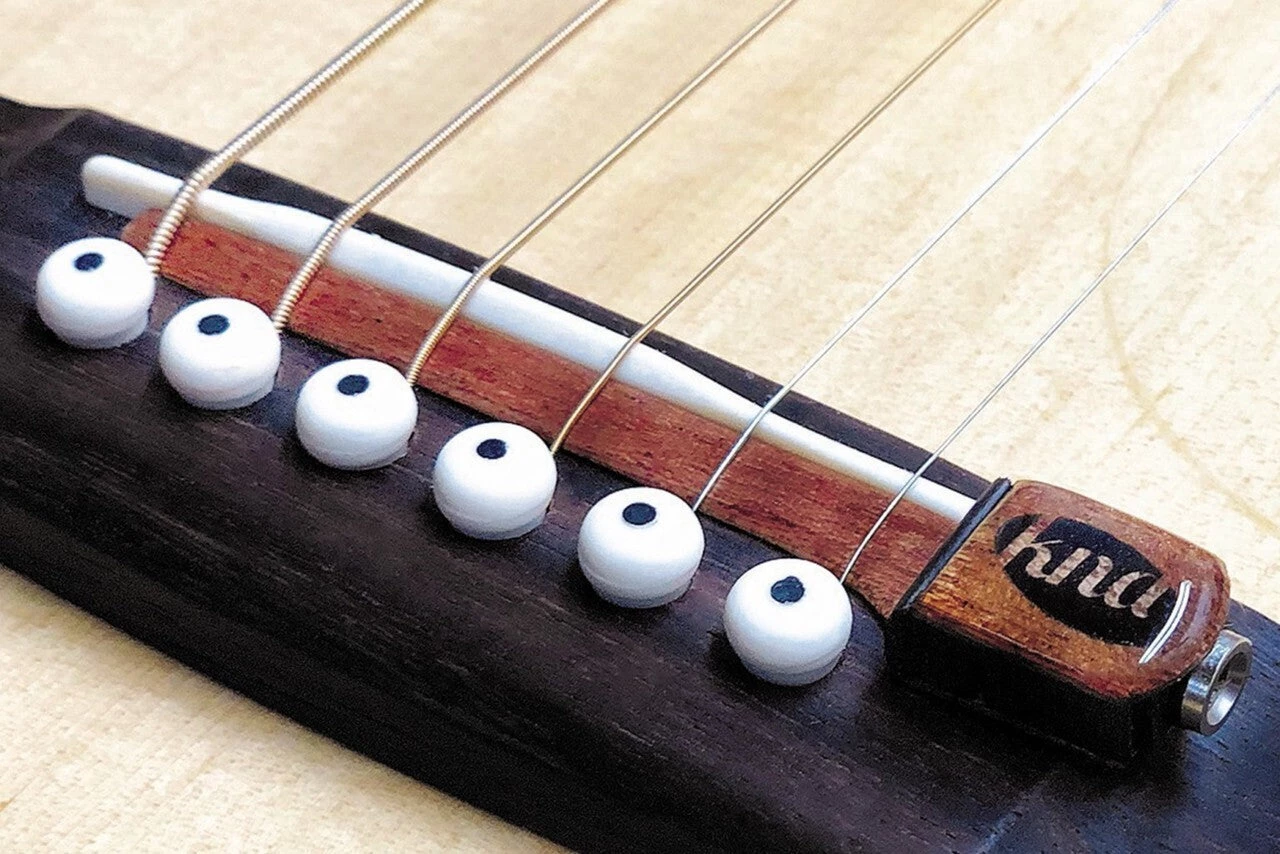

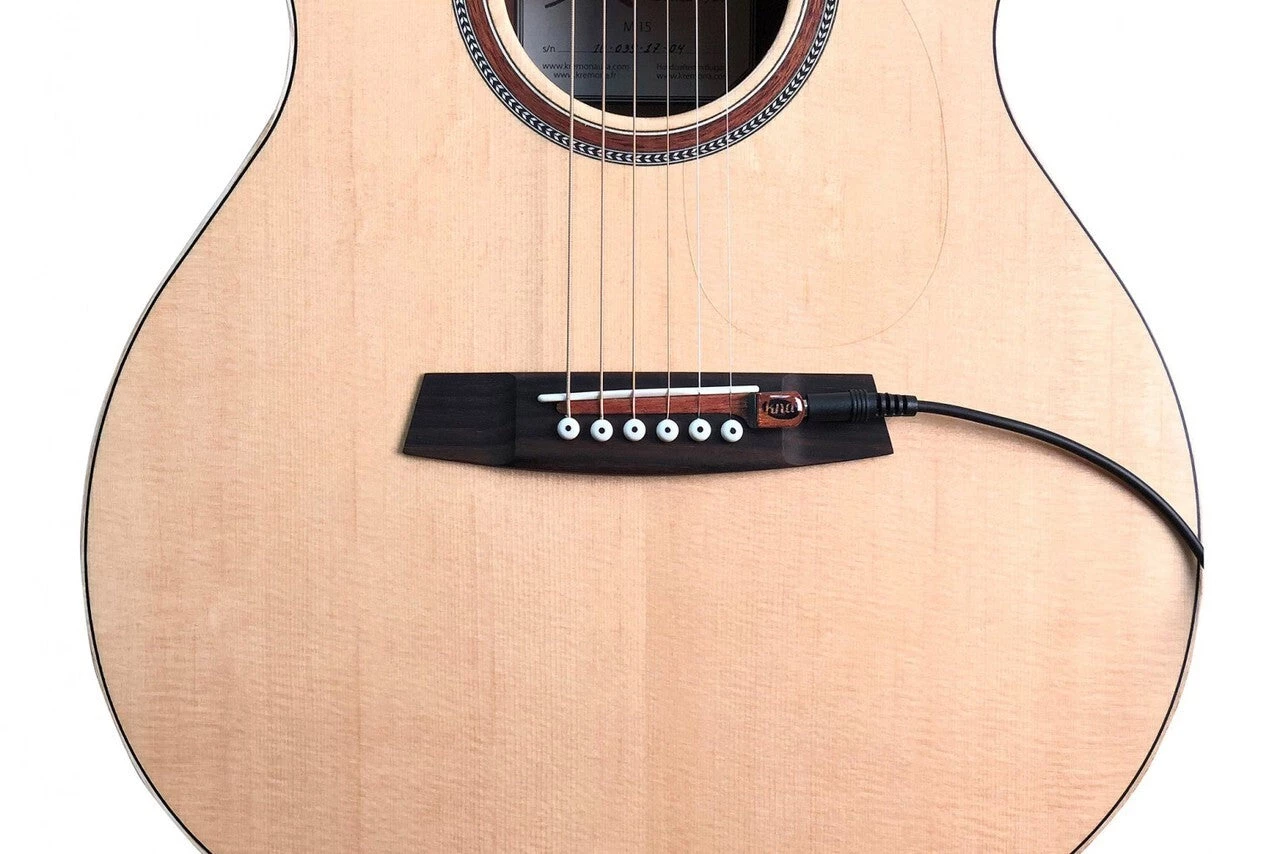

Encased in lightweight tone-wood, SG-1 ensures the natural amplified sound of your guitar without modification to the instrument. Held in place by the tension of tuned strings, SG-1 installs safely and securely between the bridge saddle and pins. SG-1 may remain installed when not in used. SG-1 comes with a complimentary detachable and easily replaceable 1/8’’ to 1/4’’ cable.



SPECIFICATIONS
Weight	3.8g. / 0.137oz
Overall length	74mm / 2.91″
Height / jack housing	9mm / 0.35″
Active element measurements
Length	73mm / 2.87″
Width	9.6mm / 0.38″
Thickness	2mm ± 0.05mm 0.079″ ± 0.002″
Wood	Mahogany
Maximum Impedance	500 â„¦
Cable	2.5meter / 8′
